Rotational Life:15,000 cycles
Contact Resistance:5Ω max.
Insulation Resistance:100MΩ minimum at 250VDC
Resistance Range:2 k Ω to 500 k Ω
Adjustment Travel:300°
Operating Temperature Range:-20℃ to +70℃
Mechanical Angle:300 °
Lead Free:Yes
RoHS Compliant:Yes
Power Rating:0.05 W at +50ºC
Tolerance:±20 %
Rotational Angle:300 °
Dimension:7mm Square
Element:Carbon

TP76/RH76

  • Carbon Resistive Element
  • Miniature Design for Audio Design Applications
  • .307" Wide and .380" High Envelope
  • Ideal for hand held communication application, hand held measuring instruments, and audio mixing systems
  • NOTE: The TP Series are NOT board washable

TP7/RH7 Series…
World’s Smallest Potentiometers!

World’s Smallest Potentiometers
  • Compact, lightweight design optimizes customers’ space saving requirements

  • Industry-proven durability and performance

  • Shaft and bushing flexibility for custom design requirements

TP7-TP9 Series Catalog

Potentiometers, Encoders & Code Switches

TP7-TP9 Series Catalog

Features

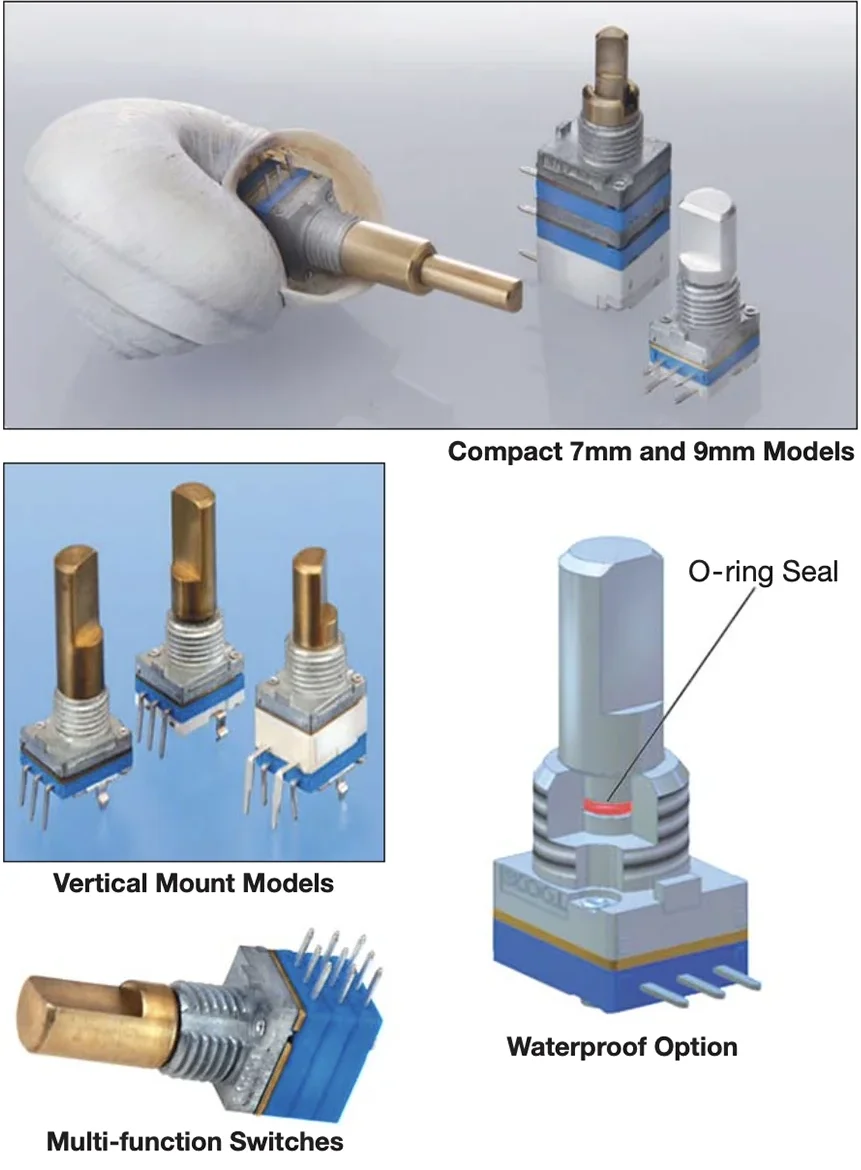

  • Compact 7mm design
  • Durability

Stainless shafts are available as an option. Stainless shafts are 1.5 times stronger than conventional brass and aluminum shafts. Stainless shafts are ideal for hand-held, 2-way radios which have a high drop risk.

  • Variations of switches available

Rotary and momentary push types are available as options. On-Off switch function and Band Selector function can be combined into one multi-function unit.

  • Waterproof option meets IP67

Rubber O-ring installed between the shaft and bushing to prevent water intrusion is available as an option.

  • High torque models

  • Vertical and horizontal mounts

  • Wide temperature range

Standard: -20 to +70C
Optional: -30 to +70C

Tp7 Tp9 Series Info2
